Norton Gearbox Lower Fixing Stud
Price range: £9.60 through £10.50

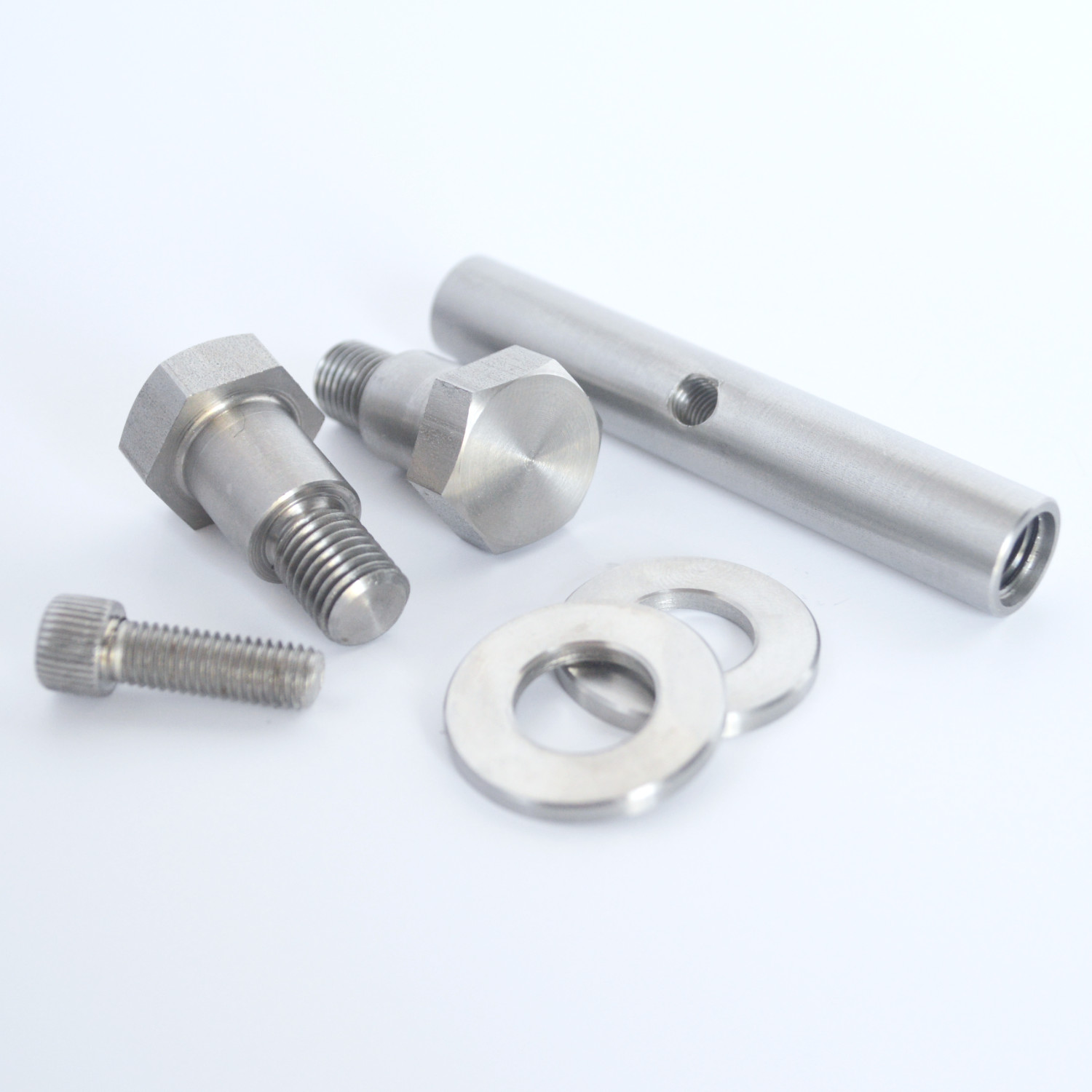

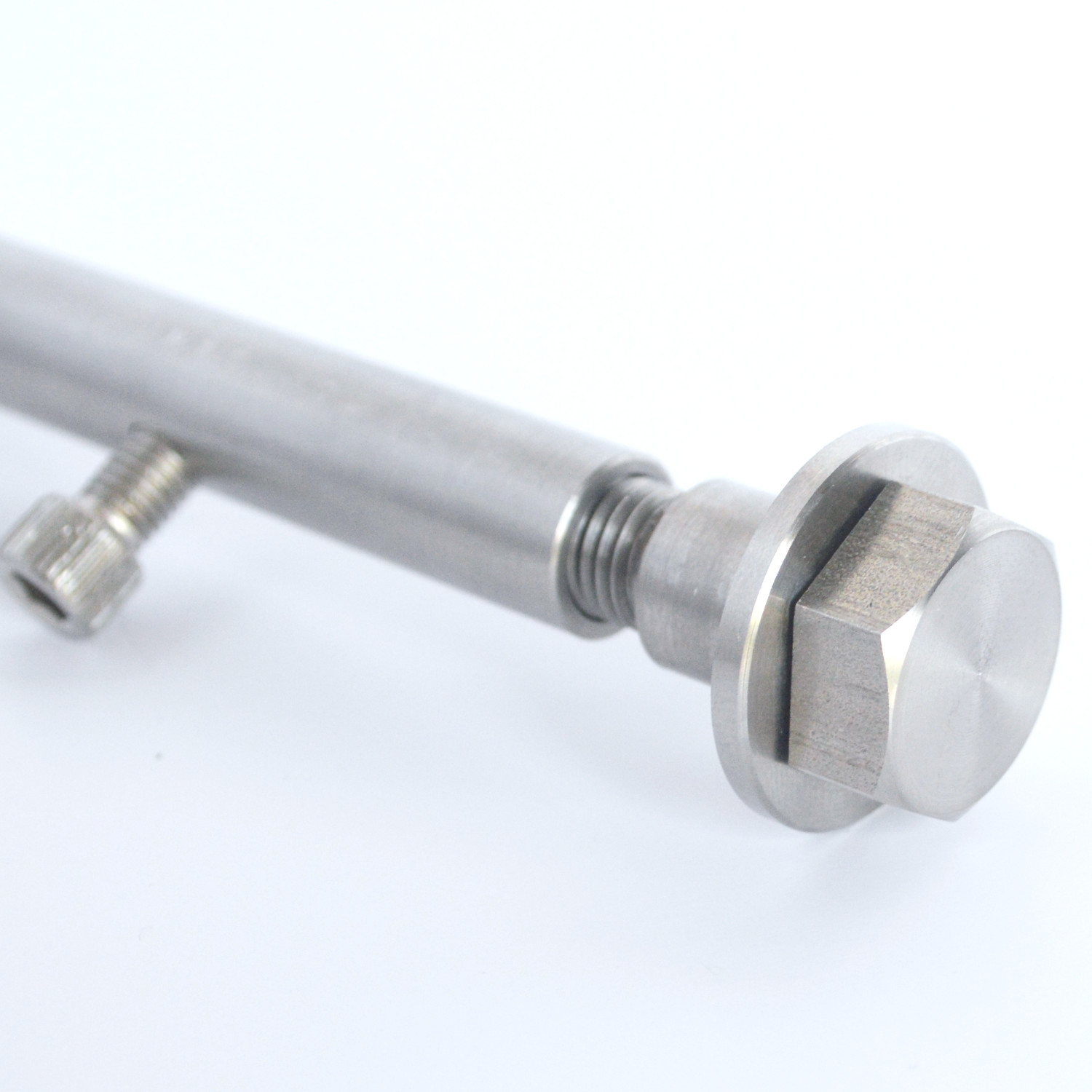

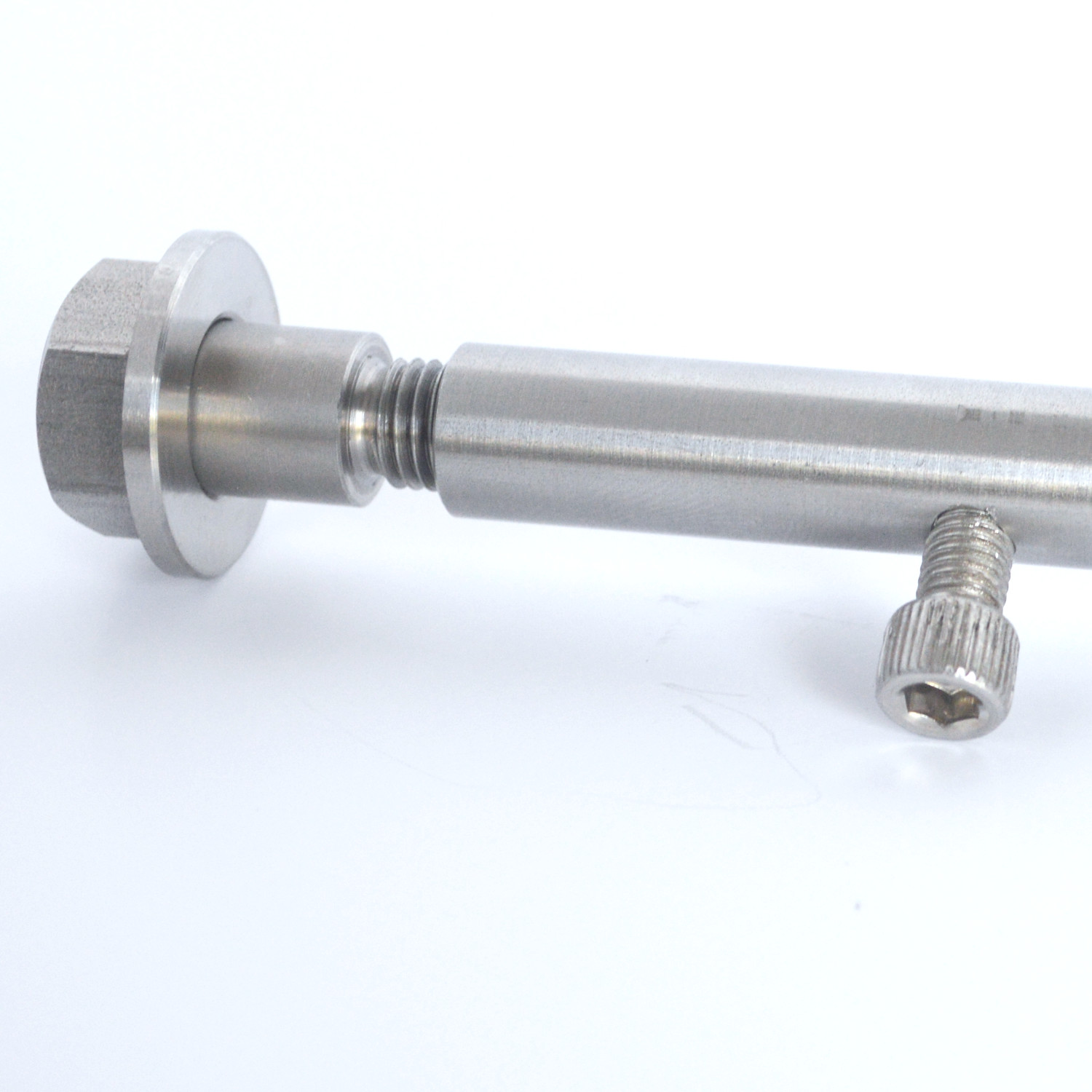

Norton Gearbox Lower Stud Assembly
£19.00

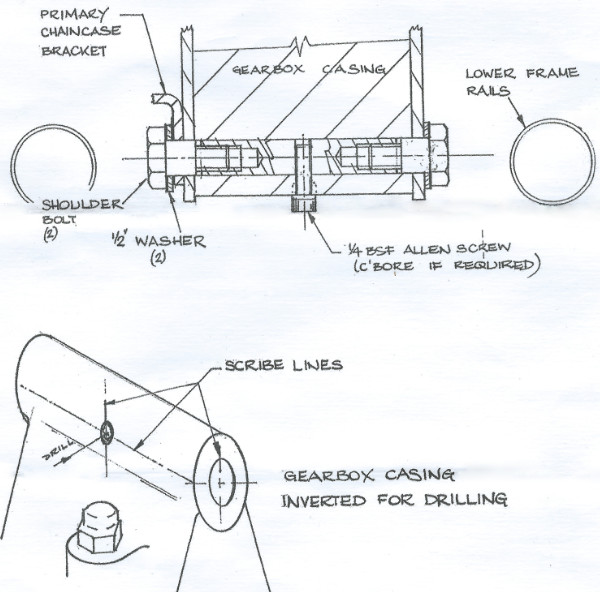

Gearbox and lower stud replacement assembly. Permits removal of the gearbox without the need to disturb the engine.
Description
Gearbox and lower stud replacement assembly. Permits removal of the gearbox without the need to disturb the engine.
This would not be possible with the normal arrangement, because the stud cannot be withdrawn, because of the proximity of the lower frame tubes. Dimensions should allow the bike to be built with the original steel engine plates, or with thicker allow plates.
Choose the correct fitment for either standard steel or thicker alloy engine plates.
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 5 × 1 × 1 in |
| Brand |
Norton |
| Finish |
Brushed ,Machine |
| Fits |
Dominator ,Norton-350-750-Singles ,Norton-350-750-Twins |
| Makes |
Stainless Classics |
| Plate Type |
Standard Steel ,Alloy |
