Norton Rear Wheel Hub Sleeve Nuts
Price range: £6.50 through £8.50
Norton rear wheel hub sleeve nuts. 3-off required, priced each.
See description for model detail.
Description
Norton rear wheel hub sleeve nuts. 3-off required, priced each.
For the Dominator it is best to measure the thread pitch required. Ideally, 26TPI relates to all Dominator models, however many were fitted with equivalent Norton Commando brake drums, so you may find the Commando hub nuts suitable at 20TPI.
Choose the type required.

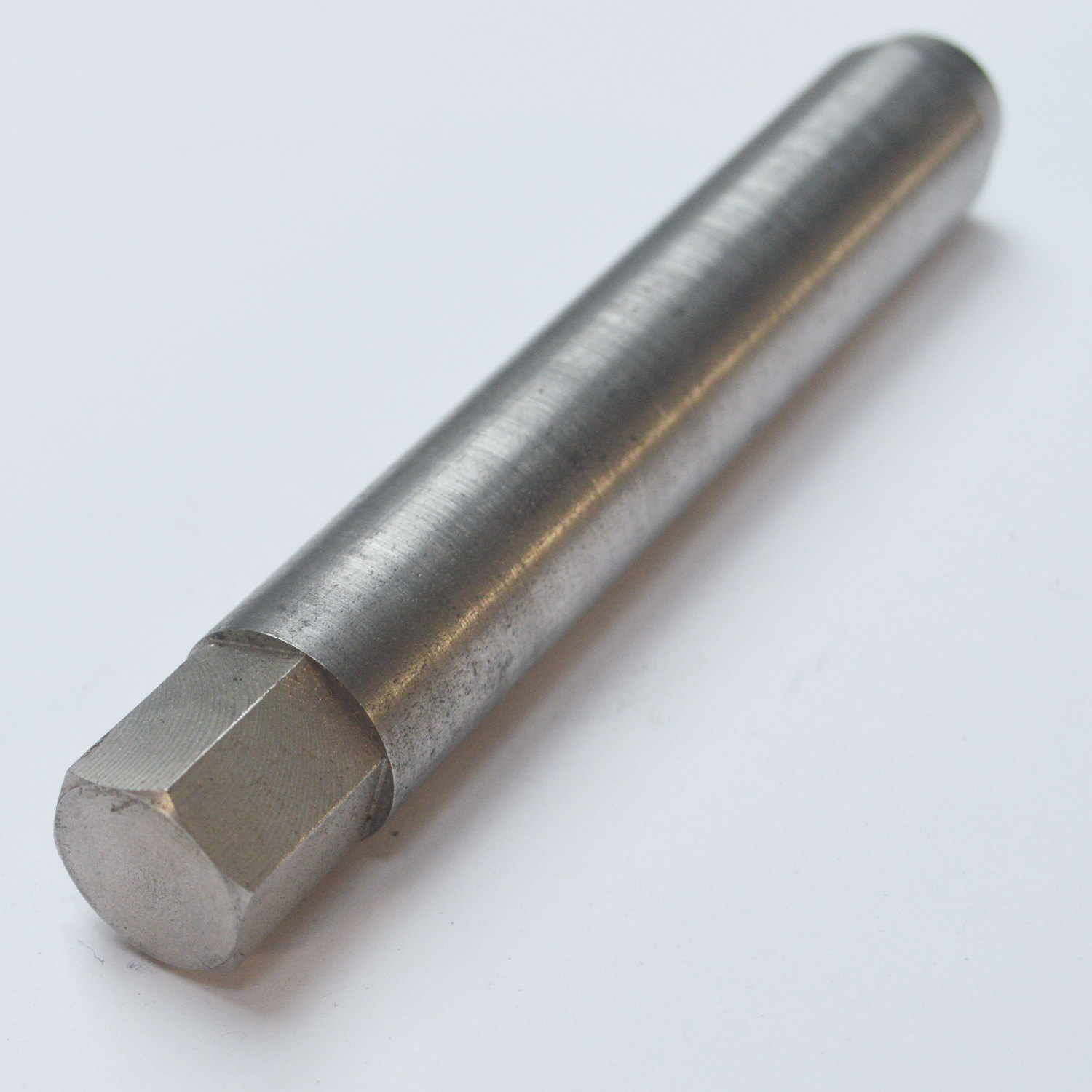

- Long: Early Norton (e.g. Model 18), Dominator 55/56-onwards (7/16″-26TPI, 4″ overall length) later type hubs

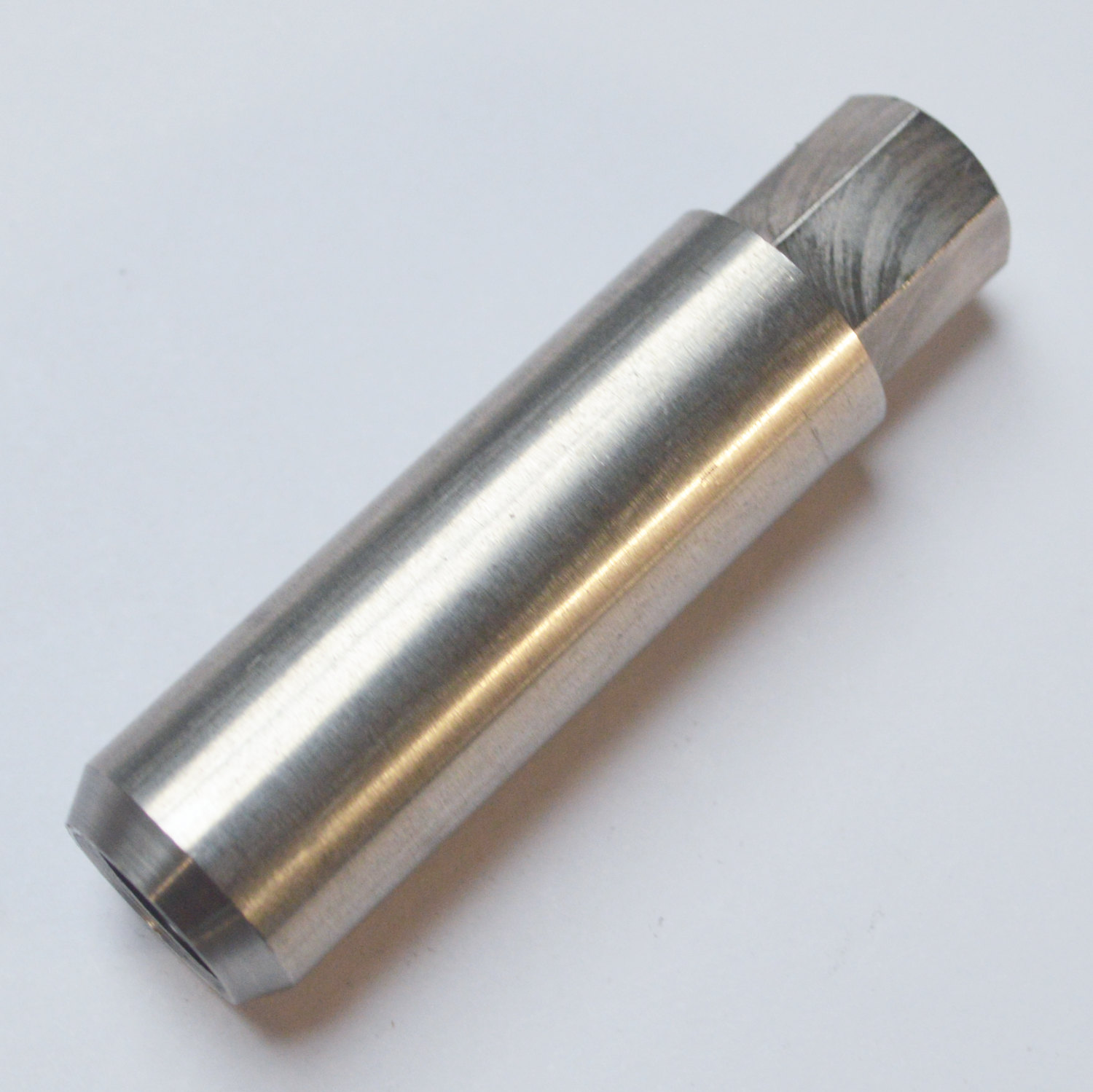

- Std 20: Early Commando 750 (7/16″-20TPI, 2-3/8″ overall length)
- Std 26:Dominator/Featherbed (7/16″-26TPI, 2-3/8″ overall length)

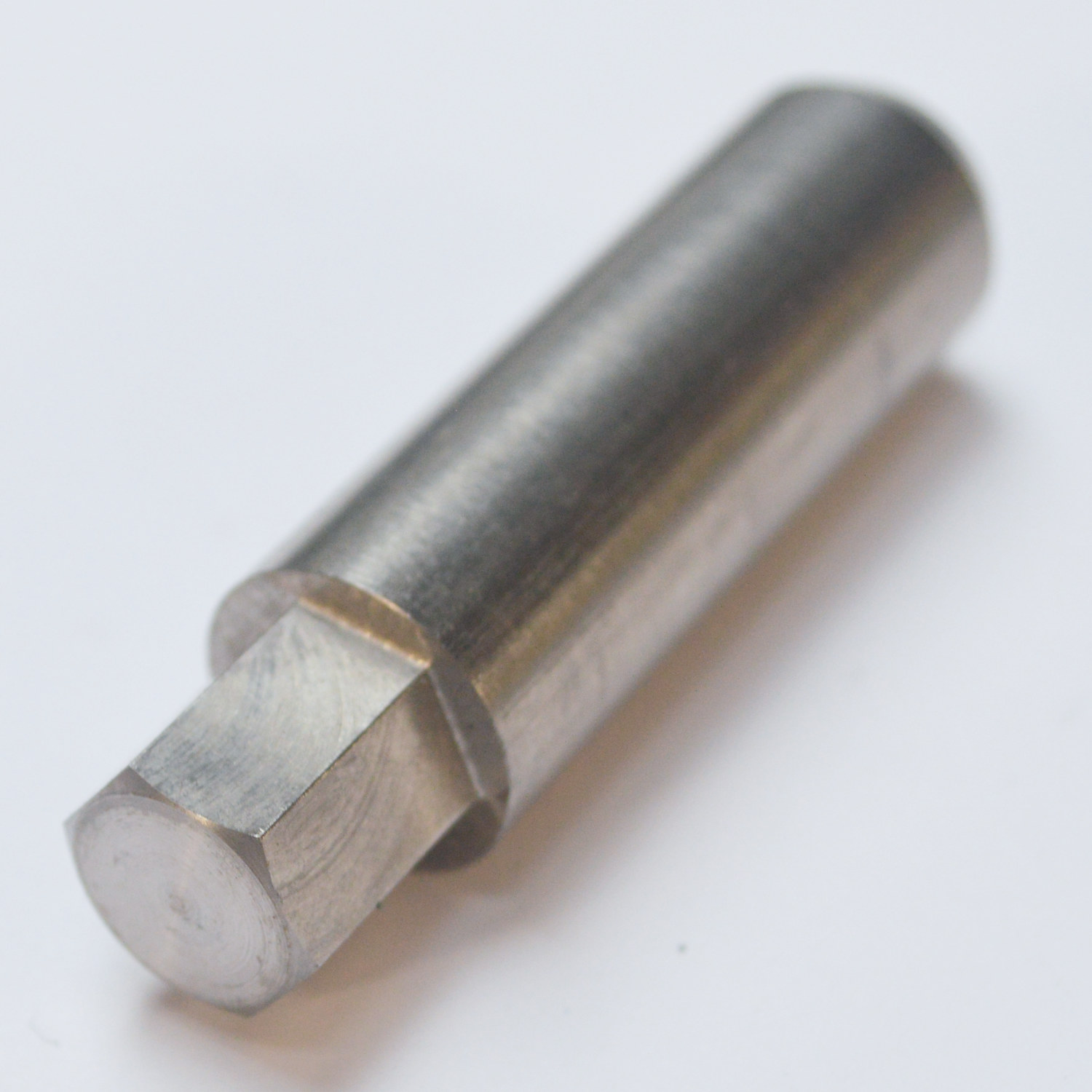

- Short: Early Dominator, 500T (7/16″-26TPI, 1-3/8″ overall length)
Matchless models with later type Commando rear hubs.
Additional information
| Weight | 0.2 kg |
|---|---|
| Brand |
Norton |
| Finish |
Machine |
| Fits |
Dominator ,Norton-350-750-Singles ,Norton-350-750-Twins |
| Makes |
Stainless Classics |
| Select Type |
Long ,Std20 ,Std26 ,Short |
