USEFUL TO KNOW
DOUBLE SIDED ADJUSTER SETS
Note: Single sided adjuster sets are the standard and most common. Very often, owners have added a second adjuster after the bike left the factory.
These sets have two gearbox adjusters, one on the gearbox side (off-side) and one behind the chaincase. Some bikes left Meriden like this and were often justified by competition needs that would prevent the gearbox from being pulled forwards by the primary chain tension, under high power reversals. In todays world, where belt drives are fitted instead of a primary chain, the requirement exists for greater rigidity of the gearbox mounting.
Back to products
Slickshift Triumph Pre-Unit Gearbox Adjuster Set
Price range: £70.00 through £72.70

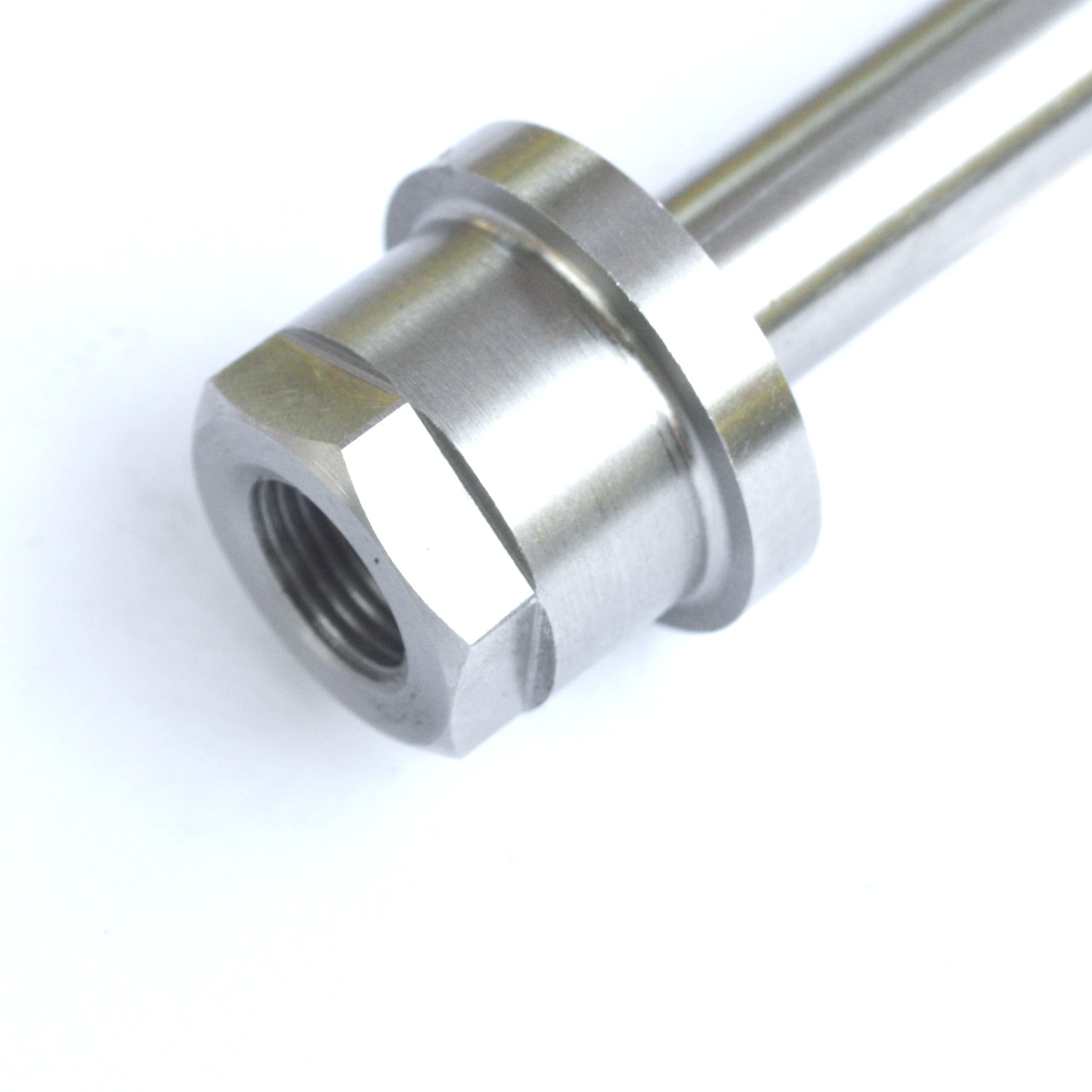

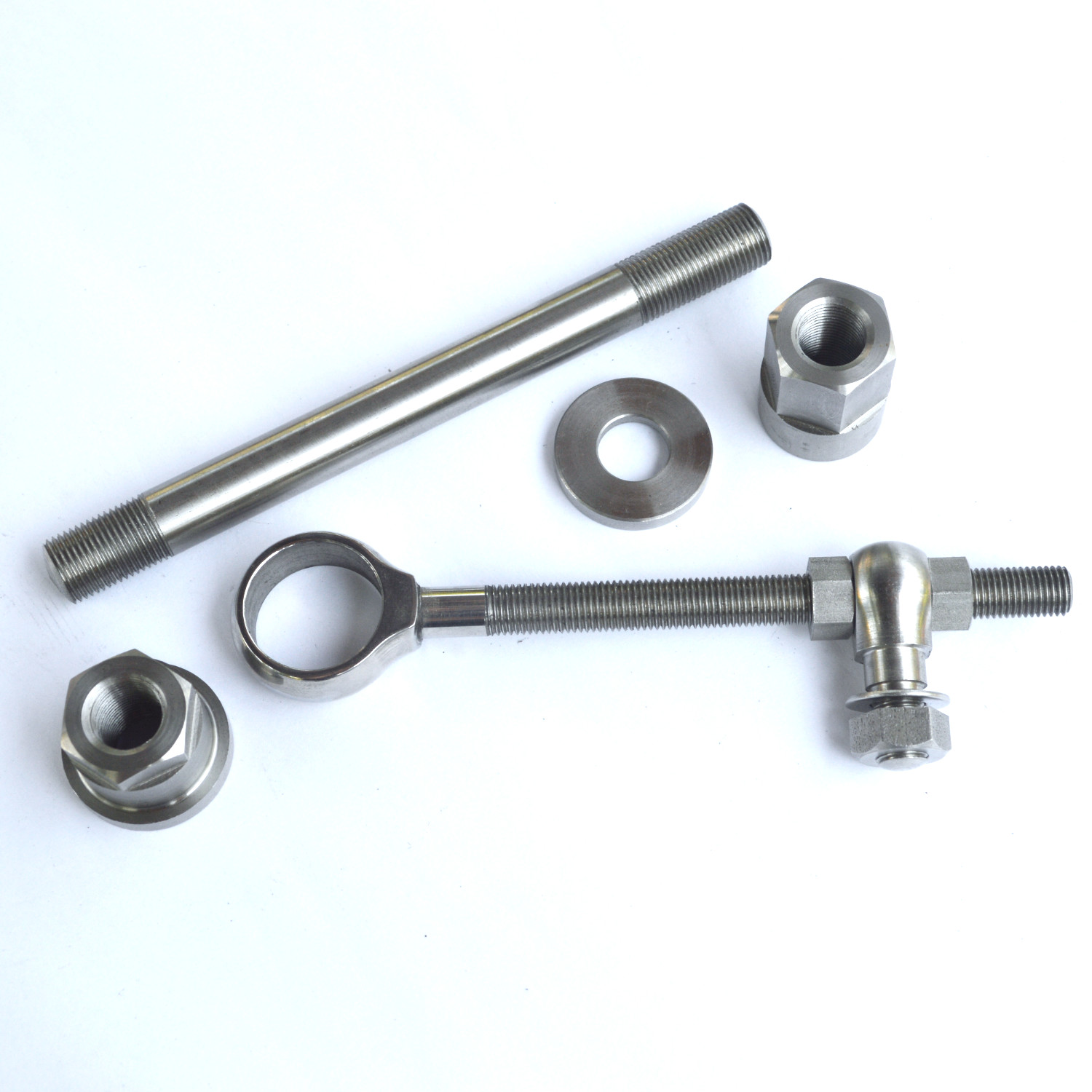

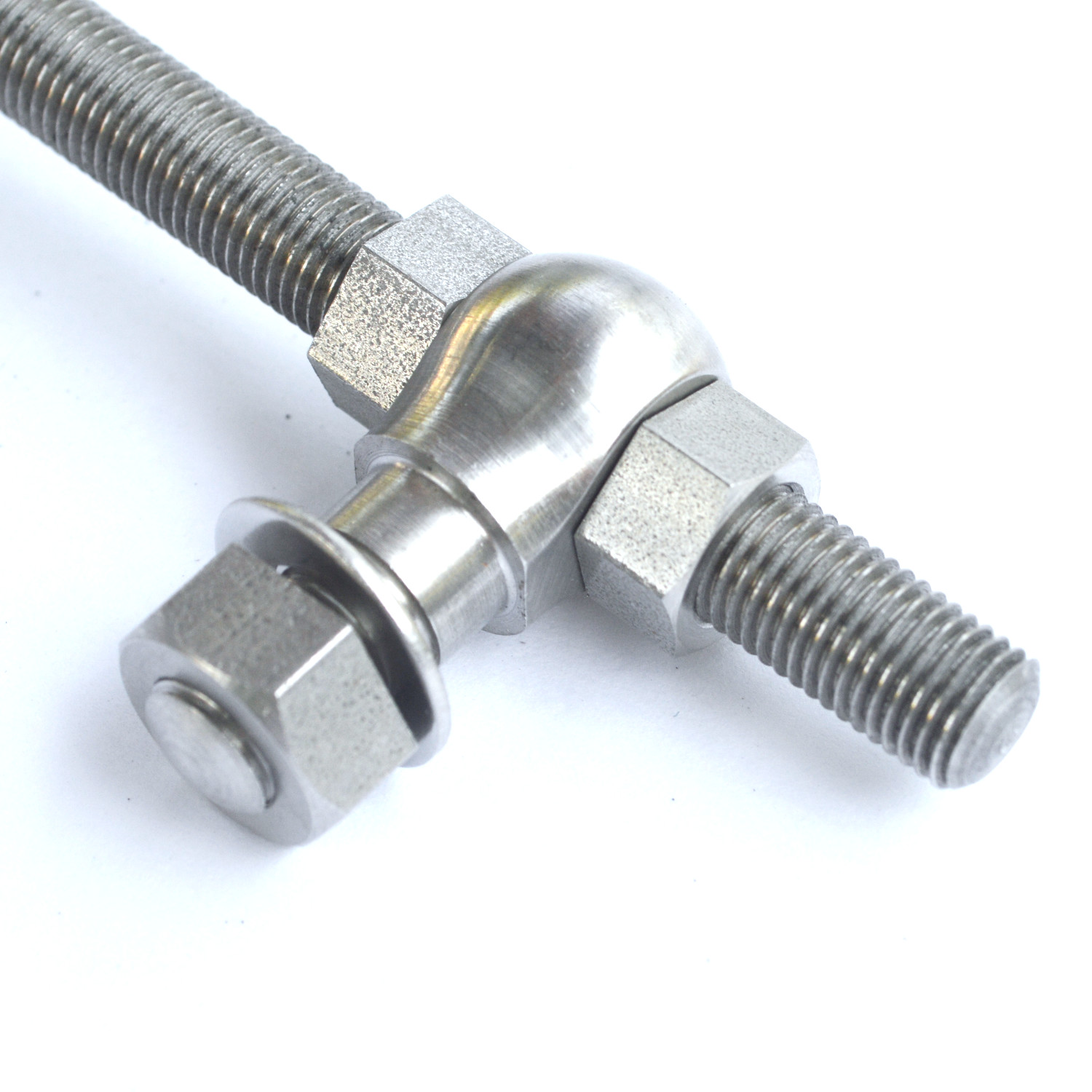

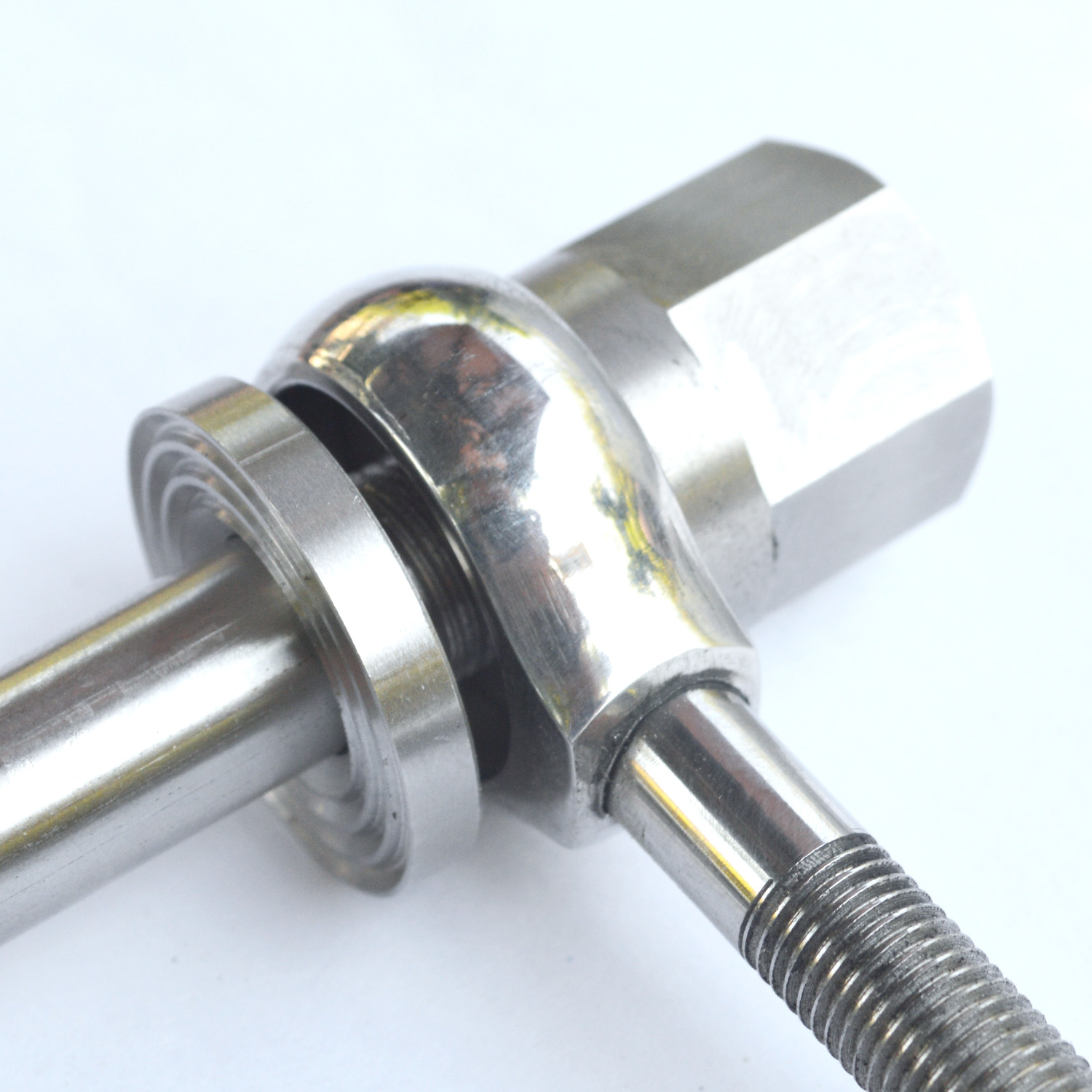

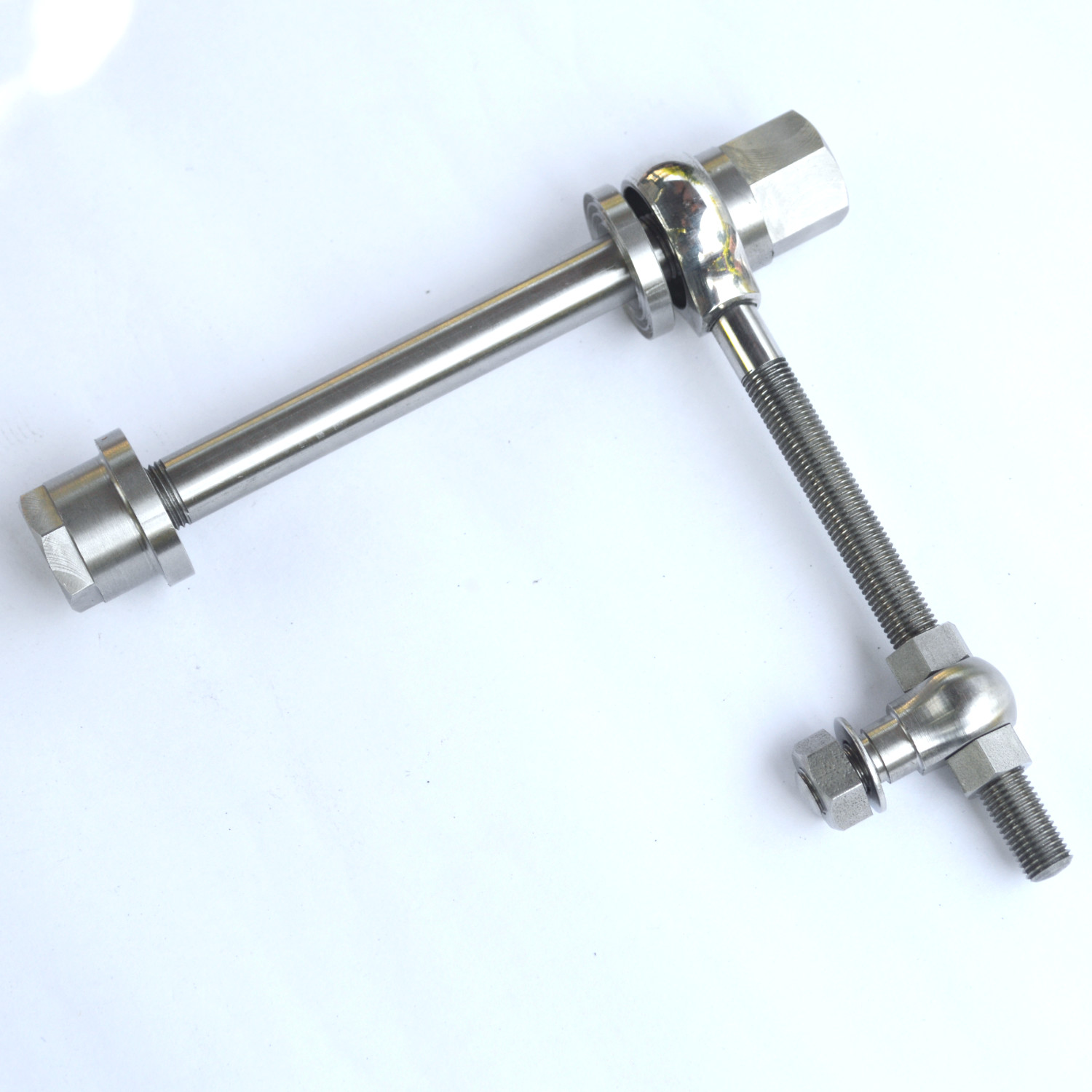

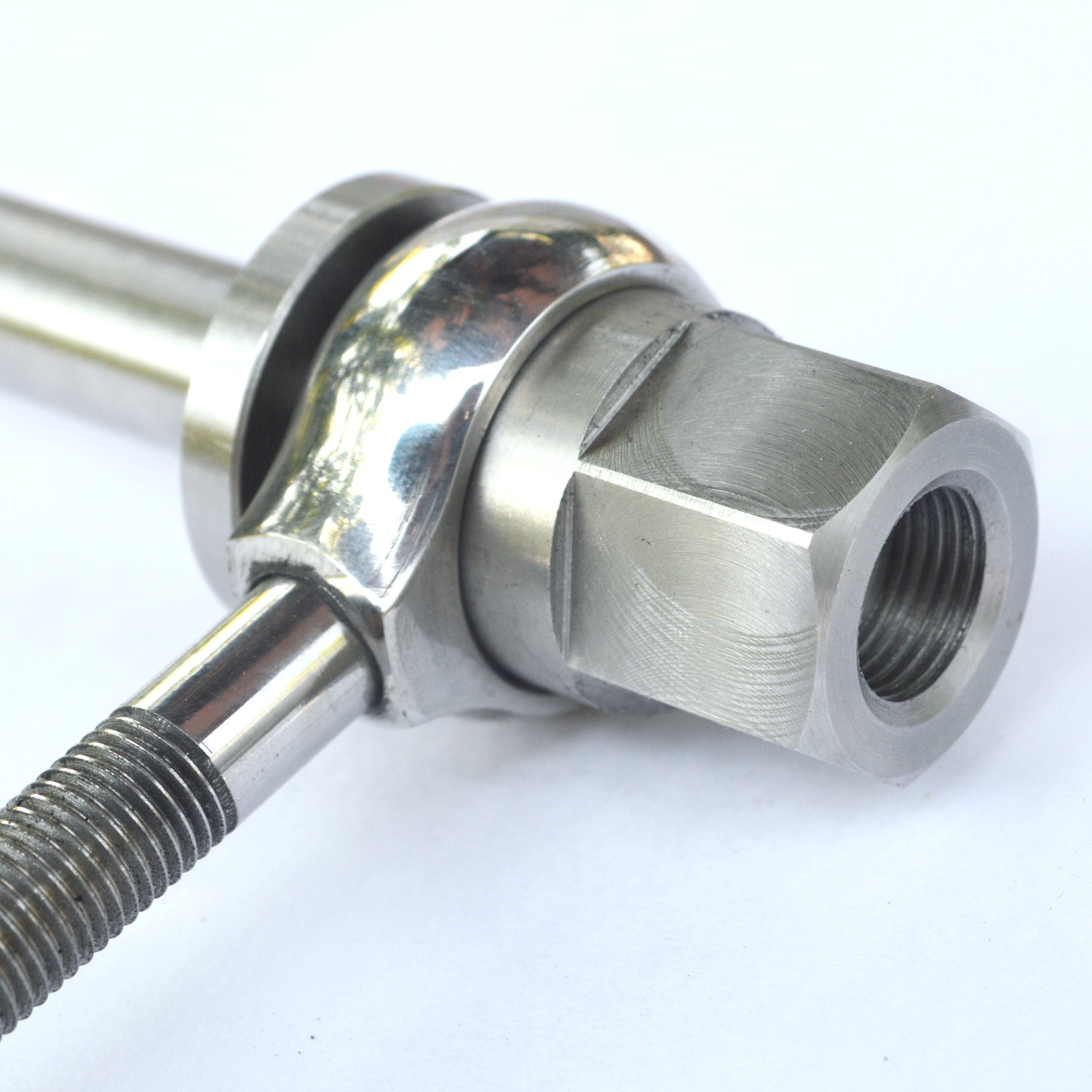

Triumph Pre-Unit Gearbox Adjuster Set
Price range: £60.30 through £63.00
Triumph pre-unit construction single sided plain adjuster set, this is a common adjuster set, however please select the type required should you need longer stud needed for alloy (thicker) plates.

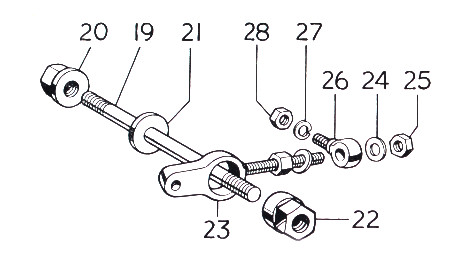

Set comprises:
- Stud (item 19)
- Long stud nut (22) – Note: shown short in diagram.
- Short stud nut (20) LHS
- Serrated washer (21) – Note: Serrations face engine plate outer surface.
- Plain adjuster (23) – 5″ long
- 2-off reduced hex nuts (25)
- Abutment pin (26, 27, 28) – small type or large as chosen.
Description
Triumph pre-unit construction single sided plain adjuster set, this is a common adjuster set, however please select the type required should you need longer stud needed for alloy (thicker) plates.
Set comprises:
- Stud (item 19)
- Long stud nut (22) – Note: shown short in diagram.
- Short stud nut (20) LHS
- Serrated washer (21) – Note: Serrations face engine plate outer surface.
- Plain adjuster (23) – 5″ long
- 2-off reduced hex nuts (25)
- Abutment pin (26, 27, 28) – small type or large as chosen.

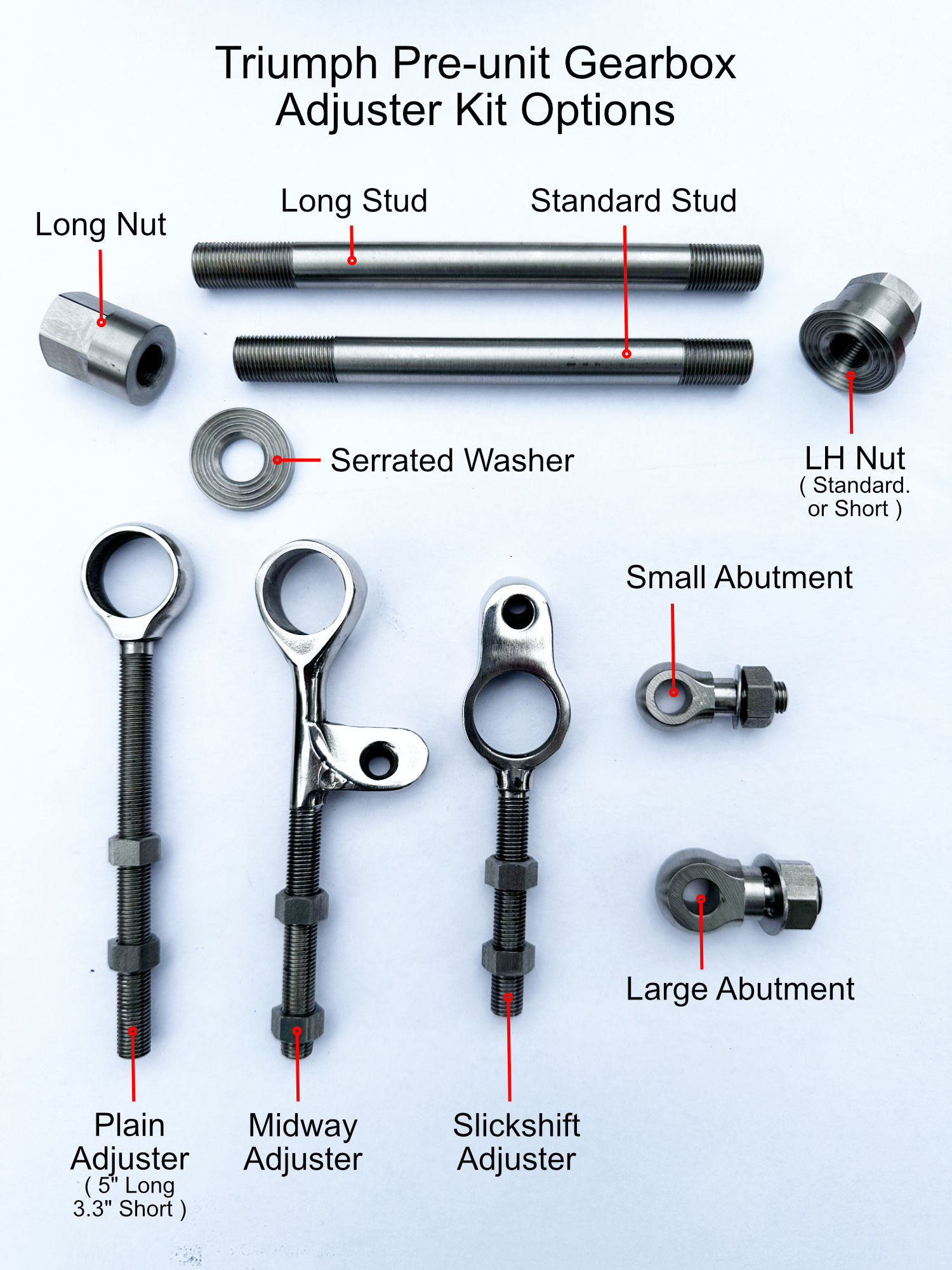

ADDITIONAL OPTIONS
GEARBOX ADJUSTER KITS
In addition to the Standard, Slickshift and Slickshift Midway variations, we can supply other configurations as required.
Also available, the Double Adjuster Set Conversion Kit.
Please Contact Us to discuss your customisation.
You may also like…
Slickshift Midway Clutch Triumph Pre-Unit Gearbox Adjuster Set
For other variations please Contact Us.
Triumph pre-unit construction single sided plain adjuster set, this is the 'slickshift' adjuster set type with the midway angled cable abutment, however please select the type required should you need longer stud needed for alloy (thicker) plates or larger abutment pin (3/8" nut).
Set comprises: stud, long stud nut, short stud nut (LHS), serrated washer, plain adjuster (5" long), 2 off-nuts, abutment pin (small type).
Slickshift Triumph Pre-Unit Gearbox Adjuster Set
For other variations please Contact Us
Triumph pre-unit construction single sided plain adjuster set, this is the 'slickshift' adjuster set type, however please select the type required should you need longer stud needed for alloy (thicker) plates or larger abutment pin (3/8" nut).
Set comprises: stud, long stud nut, short stud nut (LHS), serrated washer, plain adjuster (5" long), 2 off-nuts, abutment pin (small type).
